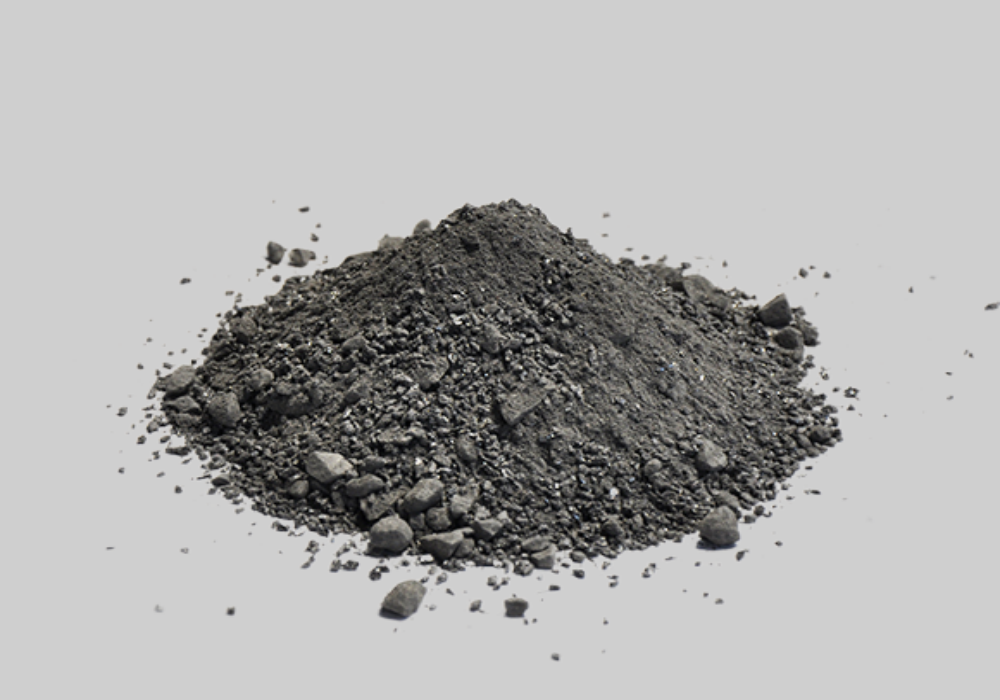

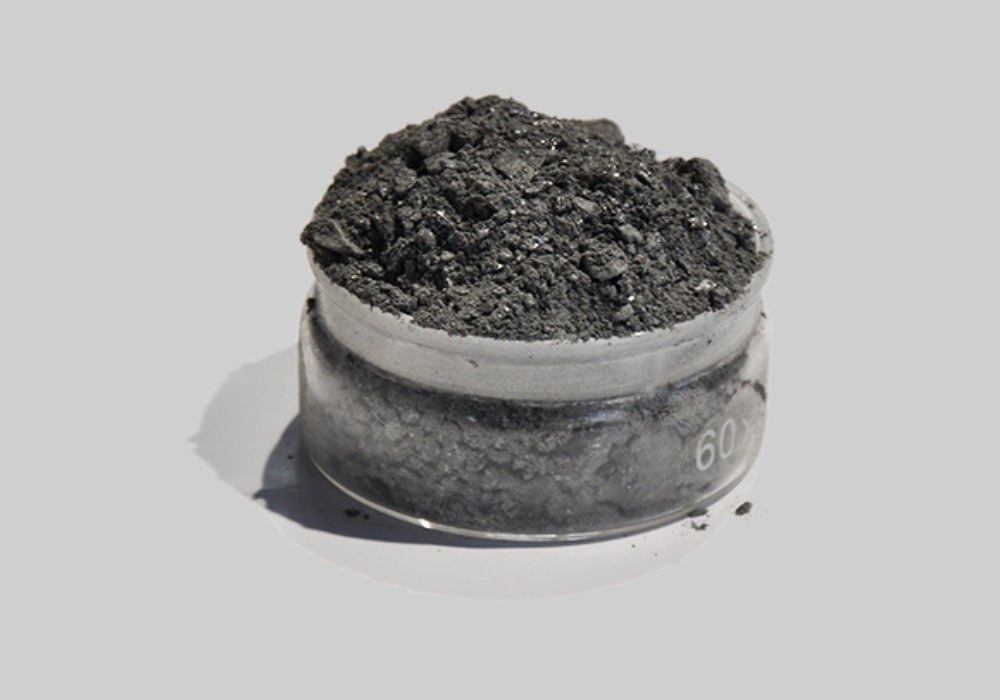

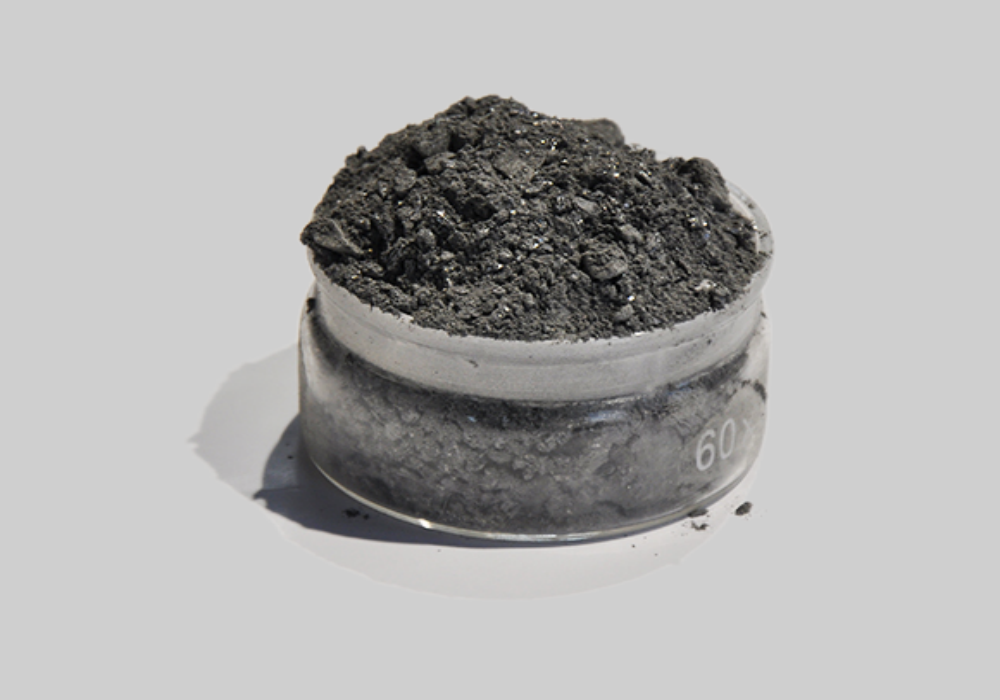

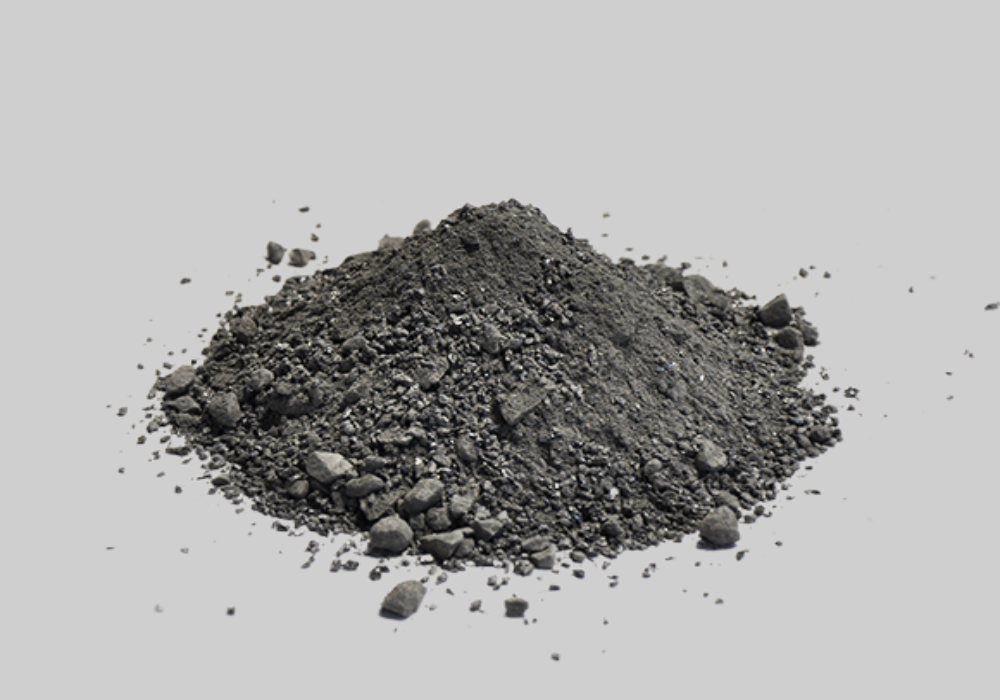

Corundum castable refractory is divided into cement-free corundum castable refractory and cement corundum castable refractory. Also there are different kinds of corundum castables refractory made by CH refractories company according to different raw material.
Corundum castable refractory is divided into cement-free corundum castable refractory and cement corundum castable refractory. Also there are different kinds of corundum castables refractory made by CH refractories company according to different raw material. For example, white fused alumina manufactured corundum castable refractory, brown fused alumina manufactured corundum castable refractory. Corundum castable refractory has good properties of high strength, good high temperature performance, stable volume, low thermal conductivity, strong resistance to slag penetration, erosion resistance, convenient construction, strong furnace structure.
◆Steel plant furnace, Cement kiln, Glass kiln, Iron making furnace, Ceramic tunnel kiln and so on.
◆ High strength
◆ High temperature resistance
◆ Strong wear resistance
◆ Good erosion resistance
◆ Excellent thermal shock stability
| Item | CH-GYJ85 | CH-GYJ90 | CH-GYJ93 | |
| Al2O3(%) | 85 | 90 | 93 | |
| SiO2(%) | 10 | 6 | 2 | |
| Bulk Density(g/cm3) | 2.9 | 3.0 | 3.0 | |
| Cold Crushing Strength(Mpa) | 110℃*24h | 80 | 100 | 80 |
| 1100℃*3h | 80 | 100 | 80 | |
| 1500℃*3h | 80 | 100 | 80 | |
| Cold Pressed Antisegregation Strength(Mpa) | 110℃*24h | 8 | 12 | 8 |
| 1100℃*3h | 8 | 12 | 8 | |
| 1500℃*3h | 8 | 15 | 8 | |
| Hot after-line rate of change(%) | 1100℃*3h | -0.1~-0.3 | -0.1~-0.3 | +-0.2 |
| Max Service temp(℃） | 1650 | -0.1~-0.5 | -0.2~-0.6 | +-0.5 |
| Construction methods | Vibration | Vibration | Vibration | |
| Reference water volume（%） | 5~6 | 5.5~6.5 | 5.5~6.5 | |
