CH Refractories manufactured Hydraulic Control System with various brands and are suitable for different kinds of slide gates

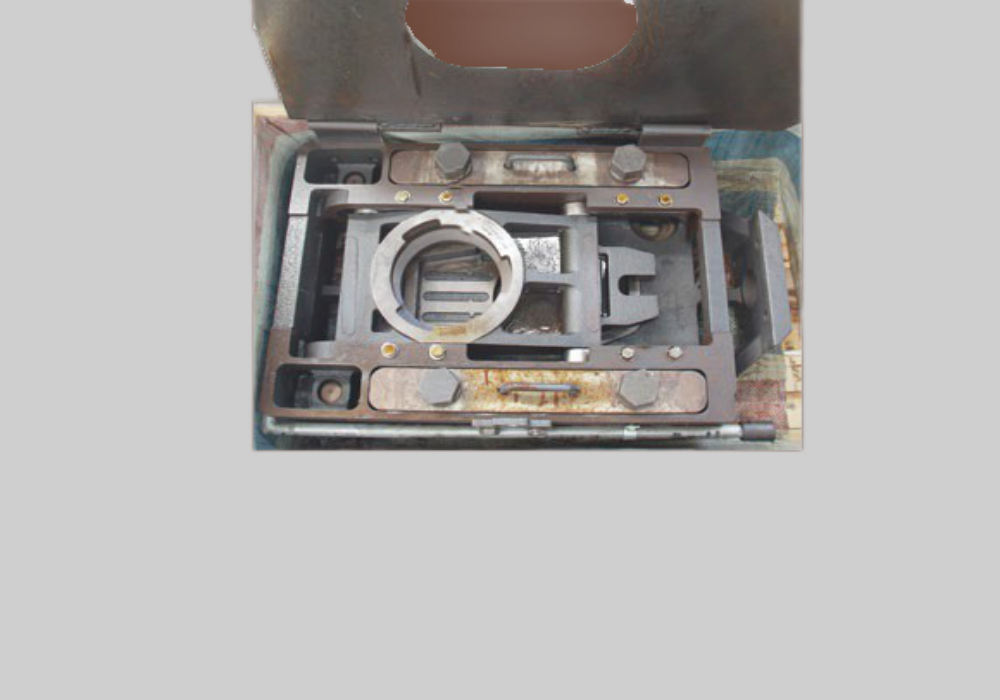

Use nodular cast iron as raw material .The sealing height is only 110mm.The fan-shaped plate is equipped with two slideplate block. The moving fan-shaped case handle can make one of the slide plate cast hole in working,and make another one moving to the other space of the hydraulic control system. At the same time,the moving out slide block can be changed.
The slide blocks thicknesses are heightened by this hydraulic control system which can be used as rapid nozzle-change mechanism. While add immerse nozzle at the bottom of slide block, the stopper can be replaced and protect the casting.
◆ Steel plant
◆ Excellent performance
◆Competitive price
| Brand | Index | |||
| Item | B50 | C40 | B60 | 310 |
| Applicability（ladle capacity） | 5~10 | 10~18 | 20~30 | 30~50 |
| Sliding distance（mm） | 95 | 90 | 100 | 110 |
| Machine dimension | 630×350×240 | 595×350×260 | 720×380×250 | 1100×430×300 |
| Machine design weight(kg) | 99 | 103 | 110 | 226 |
| Suitable cast direction | Continurous casting | Continurous casting | Continurous casting | Continurous casting |
| Drive mode | manpower | manpower | manpower | Hydraulic pressure |
| Brick pore size | 35~50 | 40~55 | 40~60 | 45~65 |
| Features | Slip sheet is force uniform have good stability.Slide gate lateral clearance self-regulating sensitivity is highIncerase the slip sheet’s freedom,bottom slide can vertical-tuningHave double-slided tight pin;the gab of hinge lateral can be adjusted. | |||
