Light weight fire clay brick is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃.
Light weight fire clay brick is made of local top grade fireclay materials under the high temperature according to the lastest national standard. The temperature in the 1200-1400 ℃. Ingredients are mixed with water made of plastic material or mud, mud with extrusion or pouring shape, 1250-1350 ℃ after dry burning oxidation atmosphere. The volume density of commonly used insulated clay brick is 0.75-1.2 g/cm3. There are insulating clay bricks, high alumina insulation brick and mullite jm insulating bricks for insulation layer, which are suitable for different high temperature. Just please inform us your required bricks working temperature, we can provide you the most economical suggestions to you.

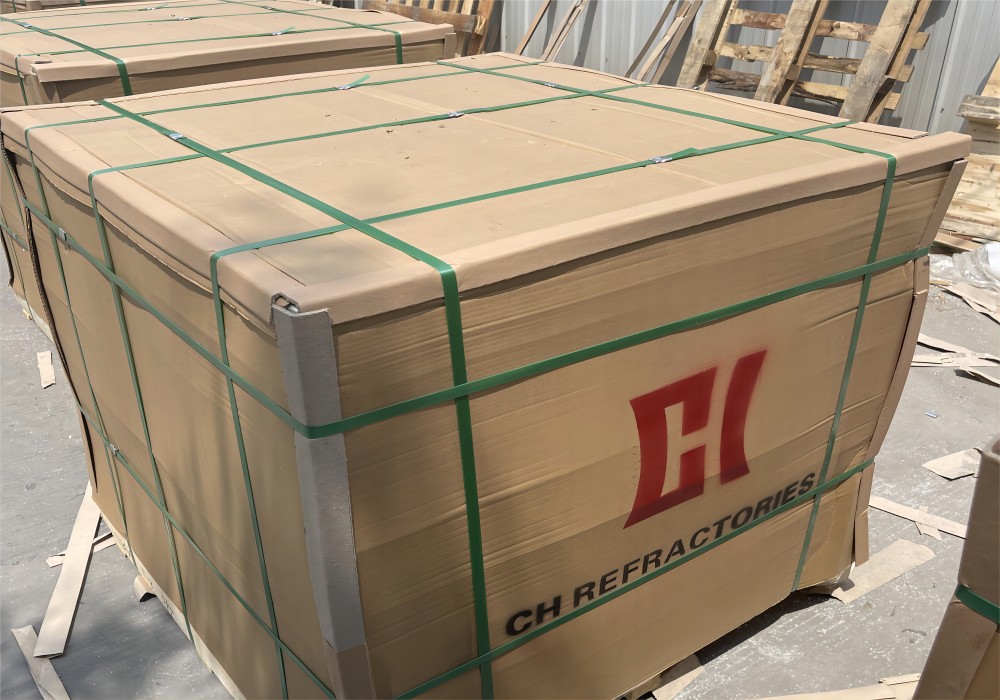

Because heat insulating bricks with smaller bulk density whose strength is not as strong as heavy weight fire bricks, when delivering, CH Refractories will package insulating firebricks with special packages to protect insulating clay bricks from damage.
◆Thermal equipment and furnace lining
◆ Insulation of masonry industrial furnaces
◆High compressive strength
◆Good energy saving performance
◆Widely application with different bulk density
◆Very economical insulation brick for high temperature insulating layer
| Brands | Clay Insulation Brick | |||
| / | CH-NG-0.5 | CH-NG-0.6 | CH-NG-0.8 | CH-NG-1.0 |
| BD g/cm3 ≥ | 0.5 | 0.6 | 0.8 | 1 |
| CCS/Mpa ≥ | 1.5 | 2 | 2.5 | 3.4 |
| The reheating line changes by no more than 2% of the test temperature/℃≤ | 1250 | 1300 | 1350 | 1350 |
| Thermal conductivity average temperature 350±25℃（W/m.k） | 0.18 | 0.25 | 0.35 | 0.5 |
| 0.1MpaRefractoriness under load (RUL)/℃ ≥ | 1160 | 1250 | 1280 | 1300 |
| Fe2O3% | 2.5 | 2.5 | 2 | 2 |
| Maximum use temperature/℃ | 1150 | 1200 | 1280 | 1300 |
