CH Refractories manufactured anchor bricks with high strength and best price. The size is customized with free mould charges

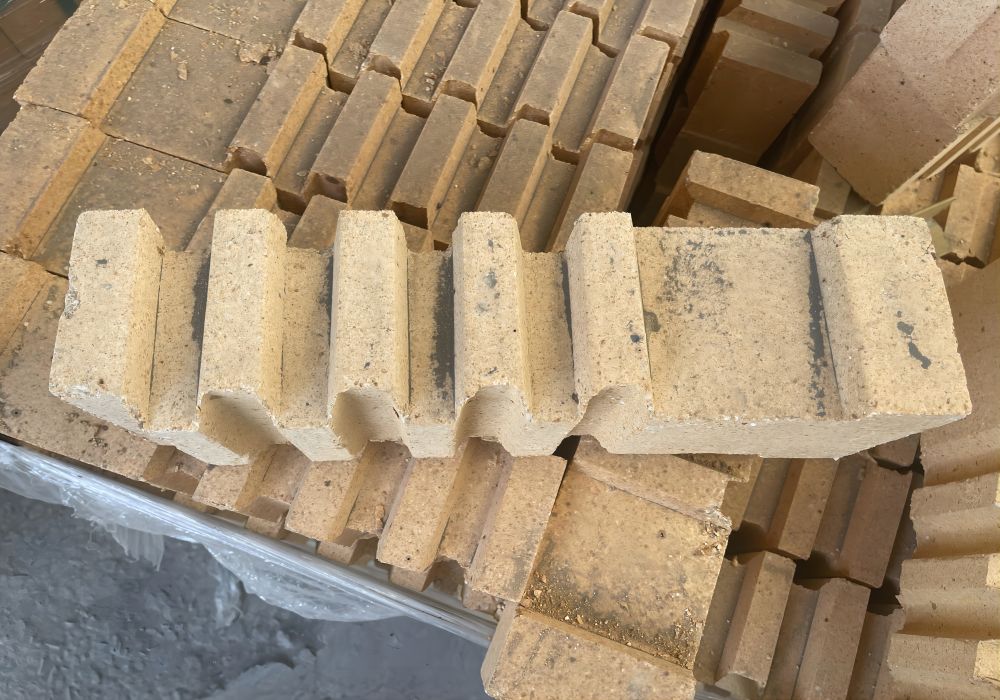

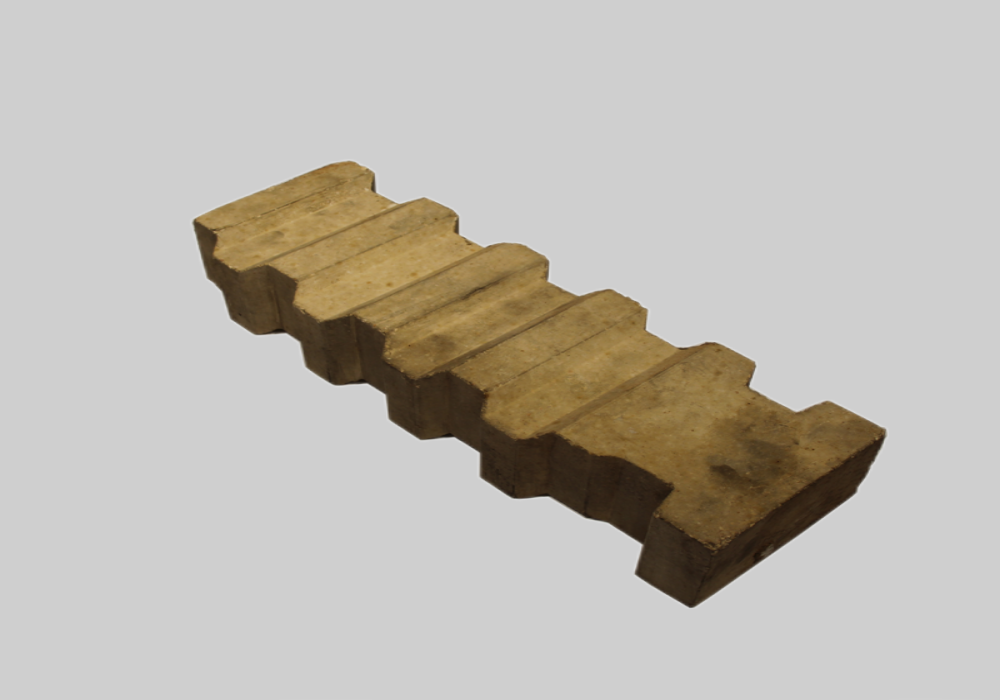

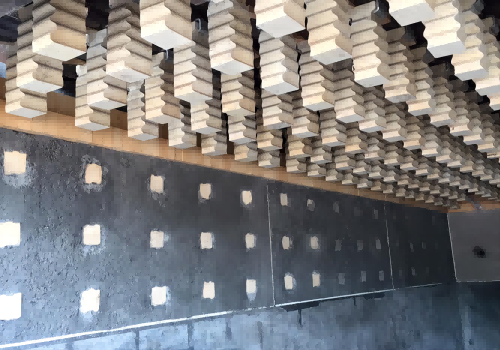

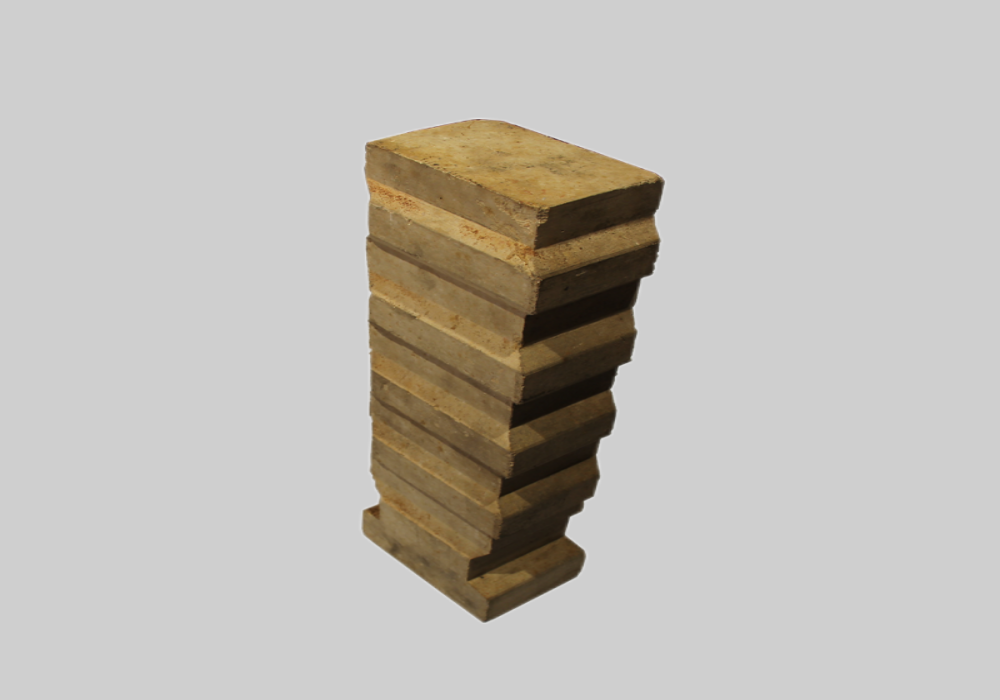

The anchor refractory brick is also called hanger brick. The anchor brick is similar to the material of the furnace lining castable, shaped by machine pressing, high temperature fired, has good thermal shock resistance and high strength, and is used on multiple heating furnaces to achieve good performance. CH Refractories has manufactured and installed high temperature anchor refractory bricks for more than 30 years, there are many different kinds of molds, when manufacturing, which will save much mold casting time. CH Refractories also can design anchor refractory brick size according to your furnace brick requirements for free and guide you how to install on site.
◆Steel furnaces
◆Ceramic tunnel kiln
◆Iron making furnaces
◆Glass kiln and cement kiln
◆High strength
◆Thermal shock resistance
◆Free construction guidance, free 3D design
◆Customerize mould according to different size requirements for free
| Brands | CH-MG55 | CH-MG66 |
| Al2O3%≥ | 55 | 66 |
| Refractoriness /℃ ≥ | 1750 | 1770 |
| Bulk density g/cm3 ≥ | 2.2 | 2.3 |
| Apparent porosity/% ≤ | 22 | 23 |
| CCS/Mpa ≥ | 48 | 50 |
| Reheating linear change/℃（1450℃） | ±0.5 | ±0.4 |
| RUL（refractoriness under load） /℃ ≥ | 1460 | 1420 |
